Filtration and Softeners

AMCO filtration and water softening systems provide the right combination of value and features required for any membrane pre-treatment application. Every AMCO system is manufactured from the highest quality components to the exacting standards of our customers' requirements, these systems are sized as pretreatment for RO units or they can be used as standalone units for a specific filtration or softening project.

AMCO Multi-Media and Advanced Carbon filters are available as single tank or multi tank configuration systems that could work as one on line and one in standby mode or in multiple on demand mode.

AMCO Water softeners are available in single-tank, twin alternating and multiple on demand systems as well.

AMCO filters and softeners are the perfect solution for a wide variety of commercial and industrial water treatment applications including:

  • De-chlorination
  • Organics Removal
  • Sediment Filtration
  • Iron Removal
  • Water Softening

Carbon FilterSoftenerTRIPLEX 3900

Standard Features

  • Fiberglass or Composite Media Tank
  • Bronze or Plastic Control Valve (top-mount)
  • PVC Control Valves (front-mount)
  • 60Hz timer motor/controls

Optional Features

  • Instrumentation or Pressure Gauges
  • Demand Metered Control (single tank systems)
  • 50Hz timer motor/controls
  • Crating

Multi-Media Filtration System

MODEL
Tank Sizes
(Dia x H) in
Media
Volume ft3
Service
Flow (gpm)
Control Valve
option
Pipe Size
Inches
Backwash
Flow (gpm)
Approximate
Weight (lbs)
AMCO-MF-8
8 x 35
0.75
2.60
Fleck 5600
1.0
4.2
95
AMCO-MF-9
9 x 48
1.0
3.30
Fleck 5600
1.0
5.3
125
AMCO-MF-10
10 x 54
1.5
4.10
Fleck 2510
1.0
6.5
161
AMCO-MF-12
12 x 52
2.0
5.90
Fleck 2510
1.0
9.4
225
AMCO-MF-14
14 x 654
4.0
6.10
Fleck 2510
1.0
12.8
375
AMCO-MF-16
16 x 65
5.0
10.502
Fleck 2750
1.5
21.2
500
AMCO-MF-21
21 x 62
7.0
18.10
Fleck 2750
1.5
29.0
765
AMCO-MF-24
24 x 72
10.0
23.60
Fleck 2850
2.0
37.7
1150
AMCO-MF-30
30 x 72
15.0
36.80
Fleck 2850
2.0
59.0
1750
AMCO-MF-36
36 x 72
20.0
53.10
Fleck 3150
2.0
85.0
2500
AMCO-MF-42
42 x 72
30.0
72.20
Fleck 3900
3.0
115.0
3650
AMCO-MF-48
48 x 72
40.0
94.50
Fleck 3900
3.0
151.0
4850
AMCO-MF-63
63 x 86
72.0
162.00
Air Operated
4.0
259.0
8950

*Flows are based on 7.5 gpm/sq, ft, of bed area

Activated Carbon Filtration System

MODEL
Tank Sizes (Dia x H) in
Media Volume (ft3)
Service Flow (gpm)
Control Valve option
Backwash Flow (gpm)
Pipe Size Inches
Approximate Weight lbs
AMCO-ACF-8
8 x 35
0.75
2.60
Fleck 5600
3.5
1.0
75
AMCO-ACF-9
9 x 48
1.0
3.30
Fleck 5600
4.4
1.0
90
AMCO-ACF-10
10 x 54
1.5
4.10
Fleck 2510
5.5
1.0
105
AMCO-ACF-12
12 x 52
2.0
5.90
Fleck 2510
7.9
1.0
160
AMCO-ACF-14
14 x 654
4.0
6.10
Fleck 2510
10.7
1.0
194
AMCO-ACF-16
16 x 65
5.0
10.502
Fleck 2750
14.0
1.5
254
AMCO-ACF-21
21 x 62
7.0
18.10
Fleck 2750
24.1
1.5
410
AMCO-ACF-24
24 x 72
10.0
23.60
Fleck 2850
31.4
2.0
680
AMCO-ACF-30
36 x 72
15.0
36.80
Fleck 2850
49.1
2.0
1025
AMCO-ACF-36
36 x 72
20.0
53.10
Fleck 3150
71.0
2.0
1630
AMCO-ACF-42
42 x 72
30.0
72.20
Fleck 3900
96.2
3.0
3095
AMCO-ACF-48
48 x 72
40.0
94.50
Fleck 3900
126
3.0
3095
AMCO-ACF-63
63 x 86
72.0
162.00
Air Operated
159
4.0
4091

*Flows are based on 7.5 gpm/sq, ft, of bed area, for chlorine removal

Water Softener System, single tank system

MODEL
Tank Sizes (Dia x H) in
Resin Volume(ft3)
Capacity (grains)
Max. Salt Regeneration
Brine Tank (dia,H) in
Brine Tank Capacity (lbs)
Backwash Flow (gpm)
Control Valve option
Approximate Weight lbs
AMCO-SWS-8
8 x 35
0.75
22,500
11.25
18 x 40
400
1.75
Fleck 5600
80
AMCO-SWS-9
9 x 48
1.0
30,000
15.00
18 x 40
400
2.20
Fleck 5600
115
AMCO-SWS-10
10 x 54
1.5
45,000
45.00
18 x 40
400
2.75
Fleck 5600
135
AMCO-SWS-12
12 x 52
2.0
60,000
30.00
18 x 40
400
3.9
Fleck 2510
195
AMCO-SWS-14
14 x 654
4.0
120,000
60.00
24 x 41
600
5.4
Fleck 2510
240
AMCO-SWS-16
16 x 65
5.0
150,000
75.00
24 x 41
600
8.9
Fleck 2750
320
AMCO-SWS-21
21 x 62
7.0
210,000
105.00
24 x 50
800
12.1
Fleck 2750
450
AMCO-SWS-24
24 x 72
10.0
300,000
150.00
40 x 48
2000
15.7
Fleck 2900
535
AMCO-SWS-30
30 x 72
15.0
450,000
225.00
40 x 48
2000
24.6
Fleck 2900
585
AMCO-SWS-36
36 x 72
20.0
600,000
300.00
40 x 48
2000
35.4
Fleck 3150
660
AMCO-SWS-42
42 x 72
30.0
900,000
450.00

40 x 60
2500
48.1
Fleck 3900
710
AMCO-SWS-48
48 x 72
40.0
1,200,000
600.00
40 x 60
2500
63.0
Fleck 3900
1160
AMCO-SWS-63
63 x 86
72.0
3,780,000
1,080.00
40 x 60
2500
108
Fleck 3900
1560

*Capacity is based on 15 lbs of salt per regeneration

Twin Alternating Water Softener System, system

MODEL
Tank Sizes (Dia x H) in
Resin Volume x tank(ft3)
Capacity (grains)
Max. Salt Regeneration
Brine Tank (dia,H) in
Brine Tank Capacity (lbs)
Backwash Flow (gpm)
Control Valve option
Approximate Weight lbs
AMCO-TAWS-8
8 x 35
0.75
22,500
11.25
18 x 40
400
1.75
Fleck 9000
175
AMCO-TAWS-9
9 x 48
1.0
30,000
15.00
18 x 40
400
2.20
Fleck 9000
230
AMCO-TAWS-10
10 x 54
1.5
45,000
45.00
18 x 40
400
2.75
Fleck 9000
290
AMCO-TAWS-12
12 x 52
2.0
60,000
30.00
18 x 40
400
3.9
Fleck 9000
400
AMCO-TAWS-14
14 x 654
4.0
120,000
60.00
24 x 41
600
5.4
Fleck 9000
500
AMCO-TAWS-16
16 x 65
5.0
150,000
75.00
24 x 41
600
8.9
Fleck 9500
650
AMCO-TAWS-21
21 x 62
7.0
210,000
105.00
24 x 50
800
12.1
Fleck 9500
900
AMCO-TAWS-24
24 x 72
10.0
300,000
150.00
40 x 48
2000
15.7
Fleck 9500
1115
AMCO-TAWS-30
36 x 72
15.0
450,000
225.00
40 x 48
2000
24.6
Fleck 2850NXT
1215
AMCO-TAWS-36
36 x 72
20.0
600,000
300.00
40 x 48
2000
35.4
Fleck 2850NXT
1535
AMCO-TAWS-42
42 x 72
30.0
900,000
450.00
40 x 60
2500
48.1
Fleck 3150NXT
1750
AMCO-TAWS-48
48 x 72
40.0
1,200,000
600.00
40 x 60
2500
63.0
Fleck 3900NXT
2190
AMCO-TAWS-63
63 x 86
72.0
3,780,000
1,080.00
40 x 60
2500
108
Fleck 3900NXT
2990

*Capacity is based on 15 lbs of salt per regeneration

Note:
*Bigger diameter tanks are available upon request
**Tanks are FRP as standard configuration and Carbon Steel or Stainless Steel are available upon request

Twin softenersBrine tanks

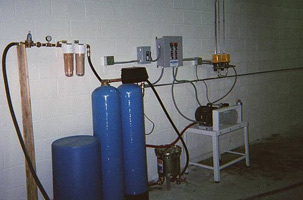

complete system
